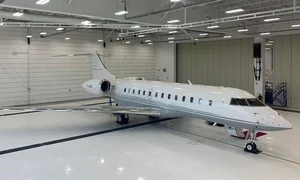

Business Jet Global 5500

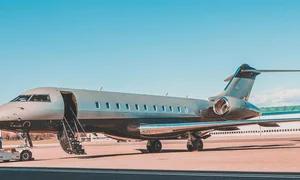

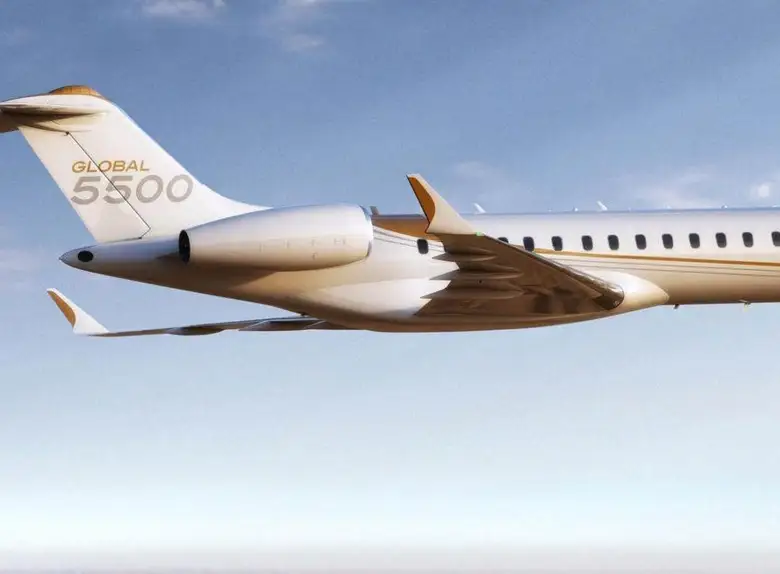

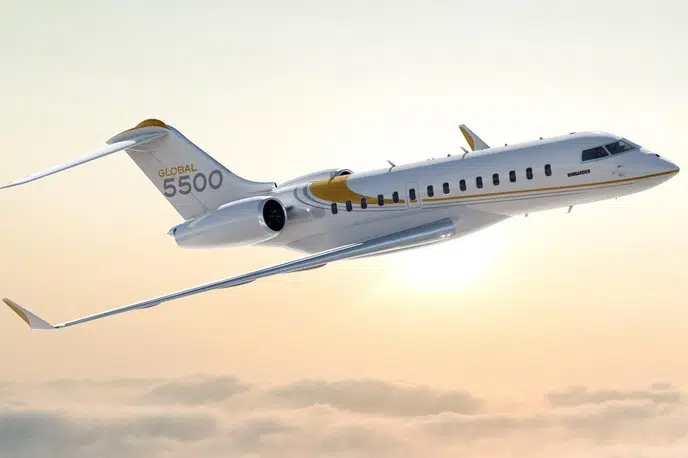

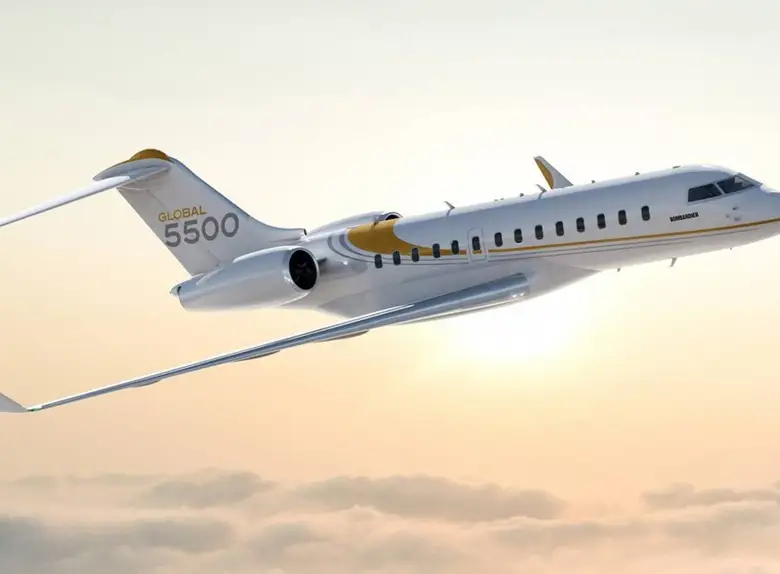

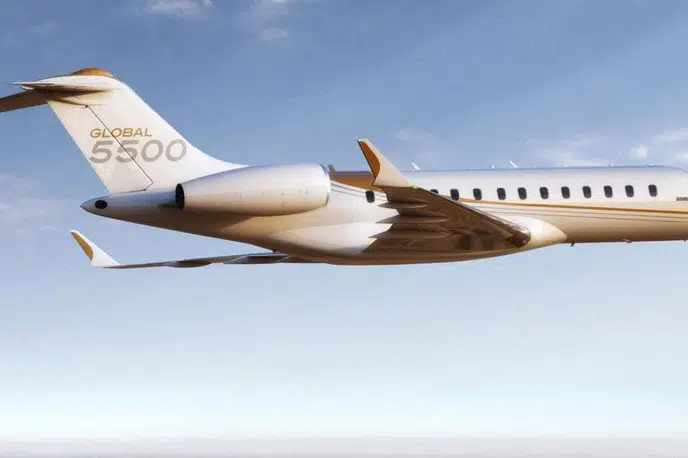

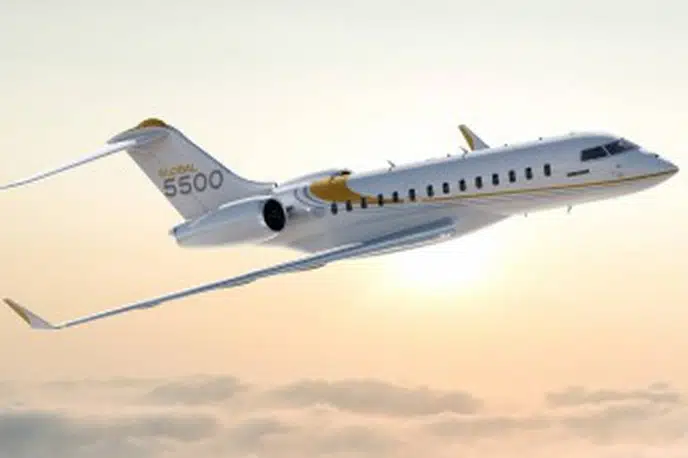

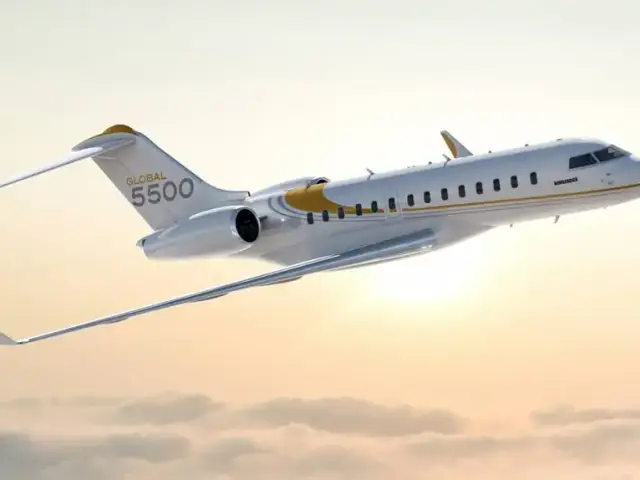

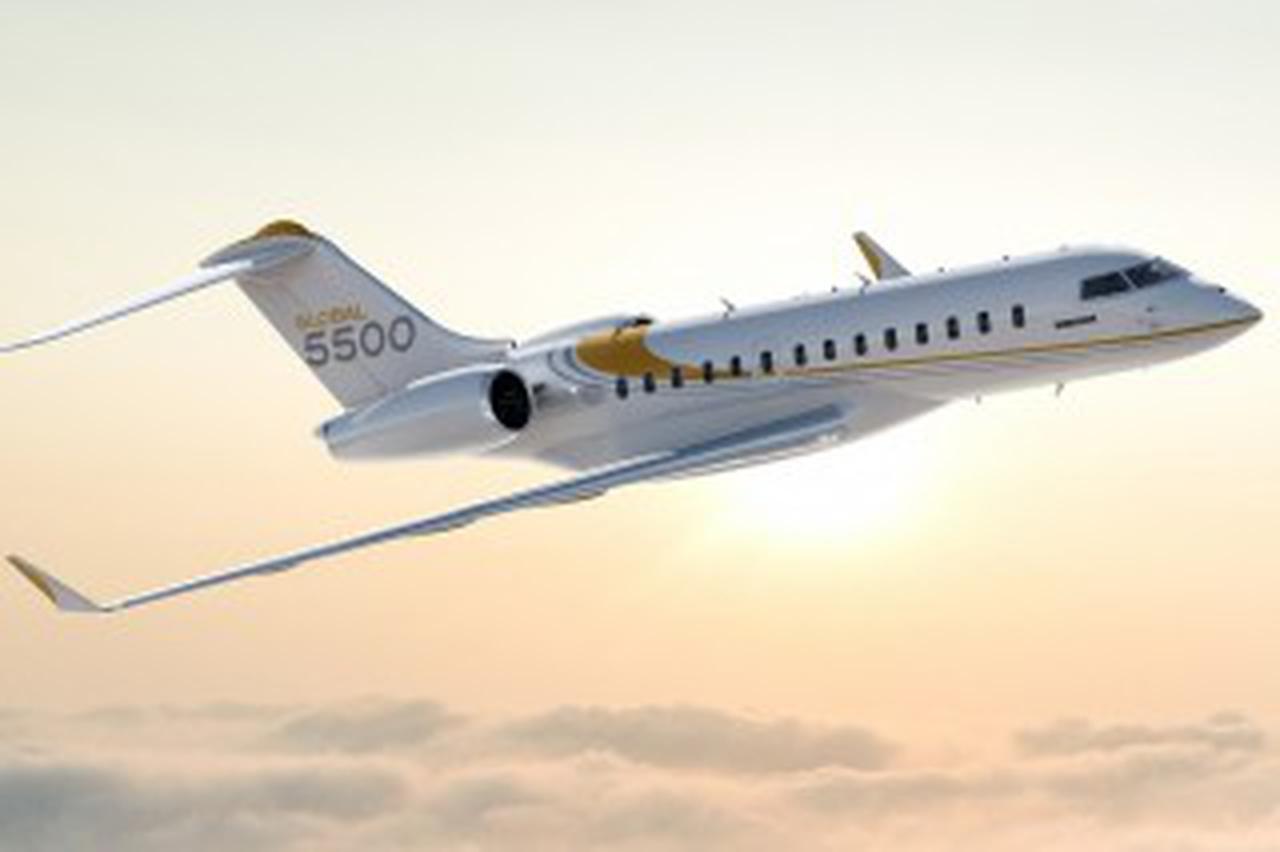

The Bombardier Global 5500 is Bombardier Aerospace's most stylish ultra-haul liner.

Bombardier Business Aircraft has introduced two new modifications to its Global 5500 and 6500 family of business jets, which will have a range of 5700 and 6600 nautical miles, respectively, and a top speed of Mach 0.9. The Global 5500 and Global 6500 will join the Global 5000, Global 6000 and Global 7500. The new aircraft are based on the Global 5000 and Global 6000 designs and will receive an additional range of 500 and 600 nautical miles, respectively, combined with a 13% reduction in fuel consumption. The flight performance of the Global 5500/6500 is improved through the use of new Rolls-Royce Pearl engines and a redesigned wing.

The new Global 5500 and Global 6500 business jets will also be able to add up to 1,300 nautical miles in high temperature and high altitude conditions, thanks to increased thrust and improved fuel efficiency. These aircraft will also be able to fly to airports with short runways and steep glide paths. The Global 5500 can connect Sao Paulo and Paris, Moscow and Los Angeles, and the Global 6500 can connect Hong Kong or Singapore to London, Toluca or Madrid.

AVIONICS

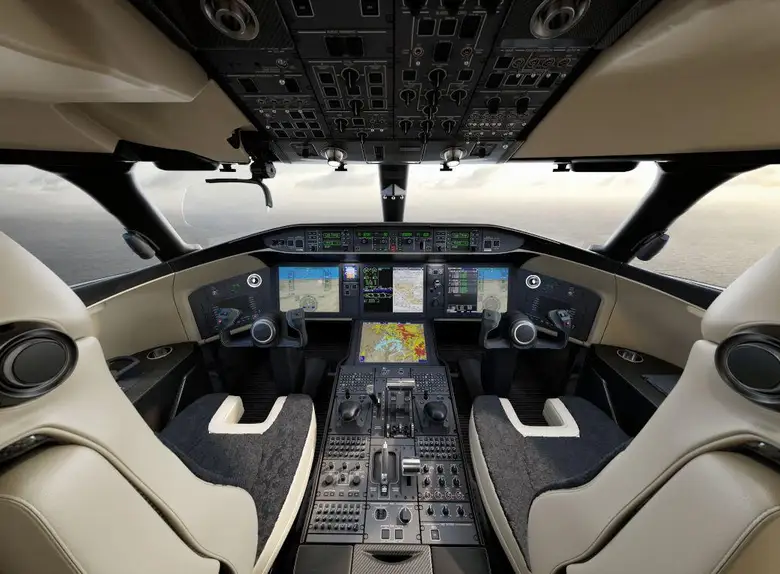

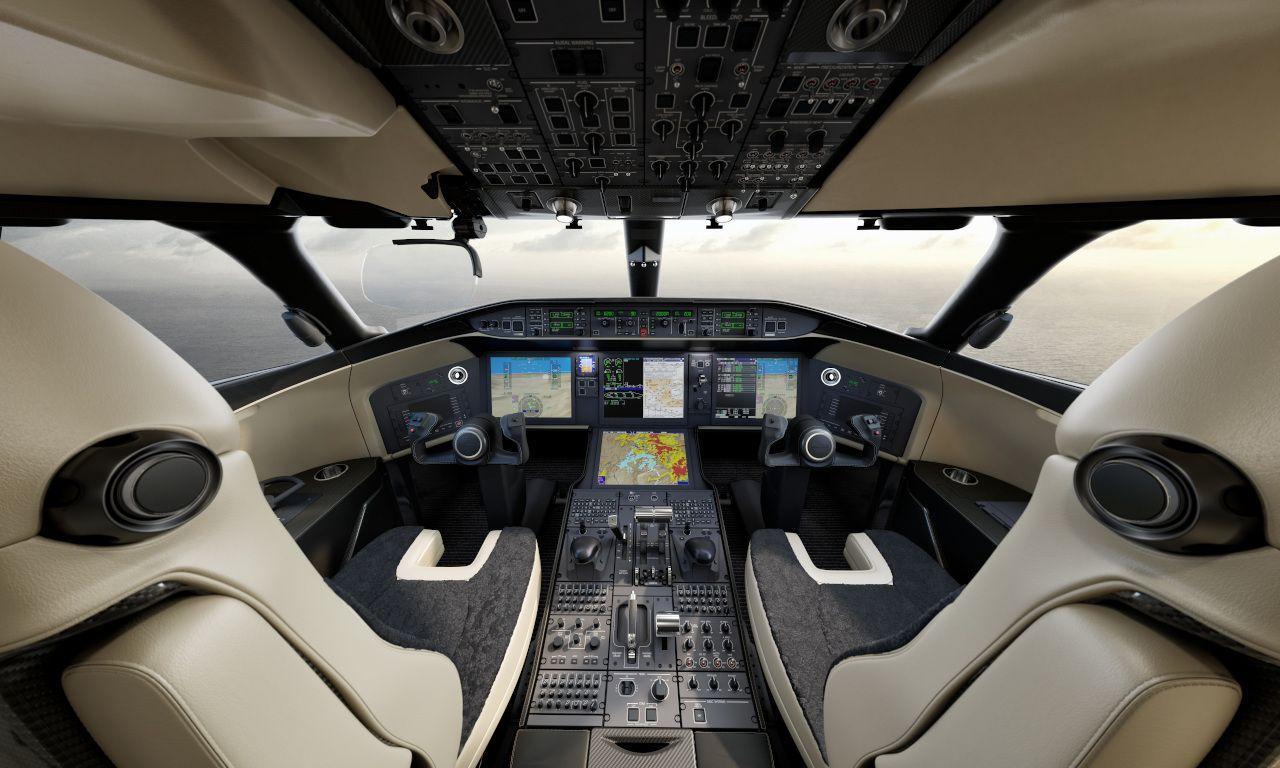

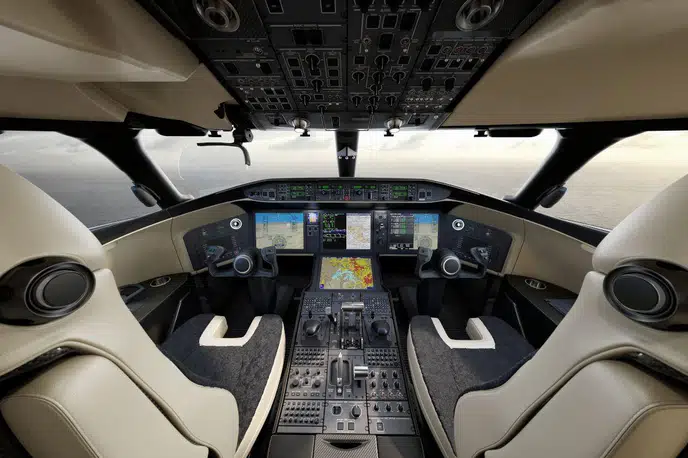

Bombardier Vision flight deck
Four large displays
Combined Vision System (CVS), Head-Up Display (HUD)
Graphical flight planning, Airport Moving Map (AMM)
MultiScanTM weather radar
ADS-B in
Latest Performance Based Navigation (PBN):
SBAS / WAAS
LPV approach
RNAV, en-route RNP & RNP AR approaches
Controller Pilot Data Link Communication (CPDLC)
Datalink, high-speed SATCOM
SPEED (MACH)
Top speed0.90
High-speed cruise0.88
Typical cruise speed0.85

AIRFIELD PERFORMANCE
Takeoff distance (SL, ISA, MTOW) 1,674 m
Landing distance (SL, ISA, typical) 673 m

OPERATING ALTITUDE
Maximum operating altitude15,545 m
Initial cruise altitude (MTOW) 12,497 m

ENGINES
Rolls-Royce Pearl engine
Thrust: 15.125 lbf (67.3kN)
Flat rated to ISA + 15 ° C
