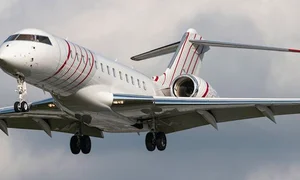

In the first half of 2012, Canadian airline Bombardier Aerospace announced the launch of the production of the long-range business jet Global 6000.

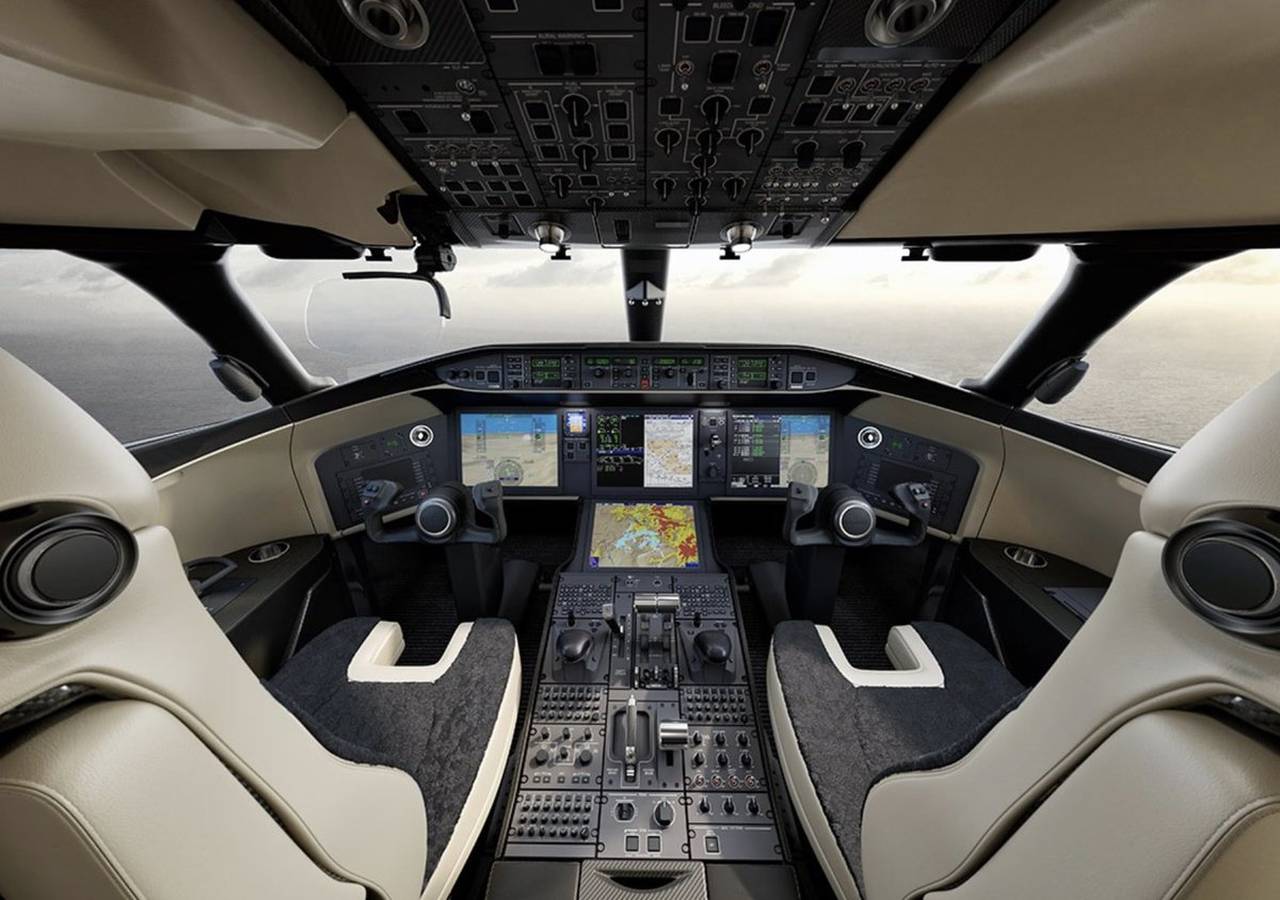

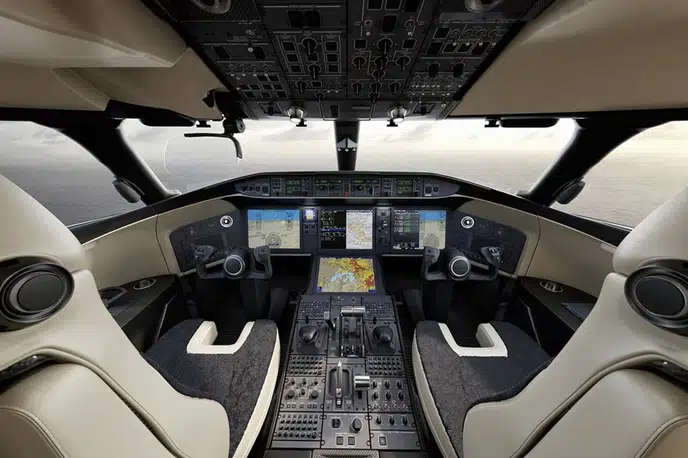

The latest technologies and design solutions were integrated into this aircraft model in such a way as to ensure high reliability and flight safety in conditions of increased comfort. Work, leisure or in-flight entertainment is easy with the Global 6000. The Bombardier Global 6000 is the best in its category business jet with an exceptional flight range. Thanks to the unique combination of comfort, speed and flight duration, this aircraft will delight even the most discerning traveler. The cockpit is equipped with the Rockwell Collins Pro Line Fusion avionics system, which includes four 15-inch LCD monitors, an advanced third-generation vision system (EVS), a head-up display, and an artificial vision system (SVS). An automatic system for maintenance and diagnostics, tools for the rapid detection and elimination of malfunctions were also installed. In general, the Bombardier Global 6000 electronic system is fully focused on the “paperless flight”: it has an extensive database, both laid down initially and generated by newly received information, sufficient to completely replace multi-kilogram reference materials. It includes the MultiScan system √ determination of weather conditions overboard, the pilot’s communication system with the DATALINK dispatcher, spatial and vertical orientation air navigation systems, and several other navigation and communication devices. With the transition to Global 6000, Bombardier is building a single brand line from Global 5000 (a shorter version with a shorter flight range) through the Global 6000 to the Global 7000 and Global 8000 - the new ultra-long-range business jets. When Bombardier has mastered the simultaneous production of all four models of the Global family: 5000, 6000, 7000 and 8000, the company will be able to provide customers with a choice of aircraft with a range of 9630 to 14630 km.

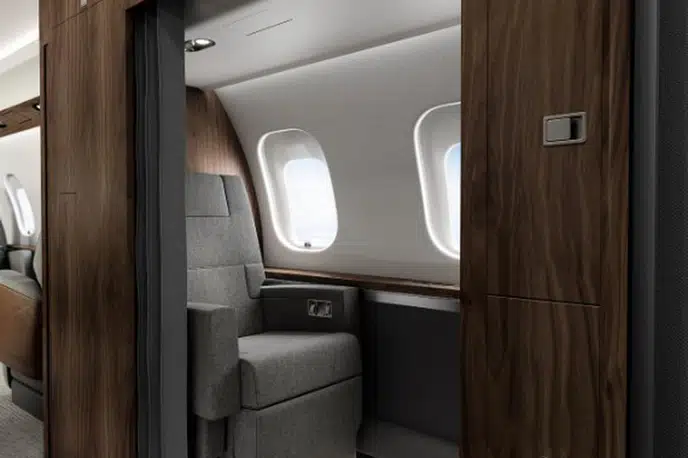

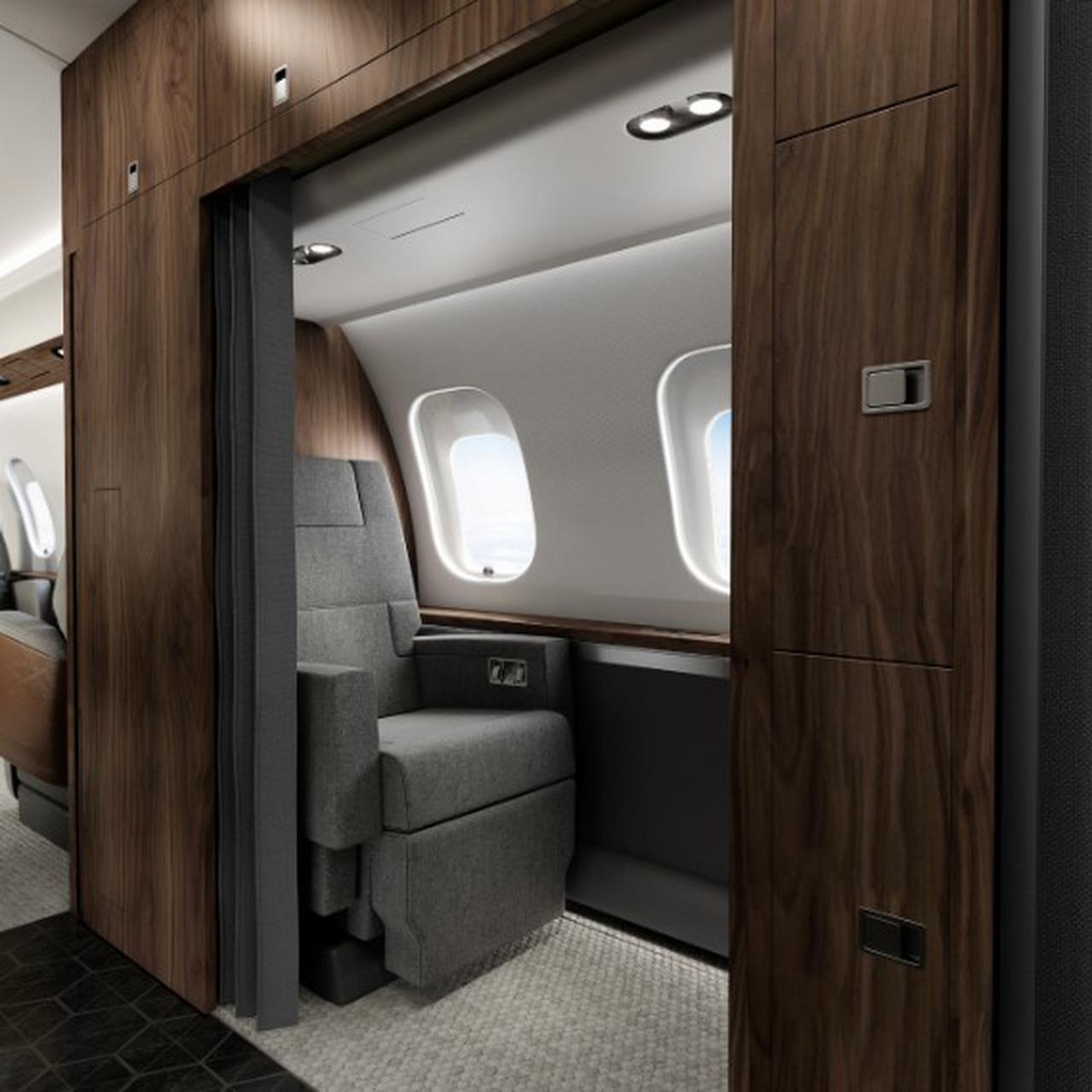

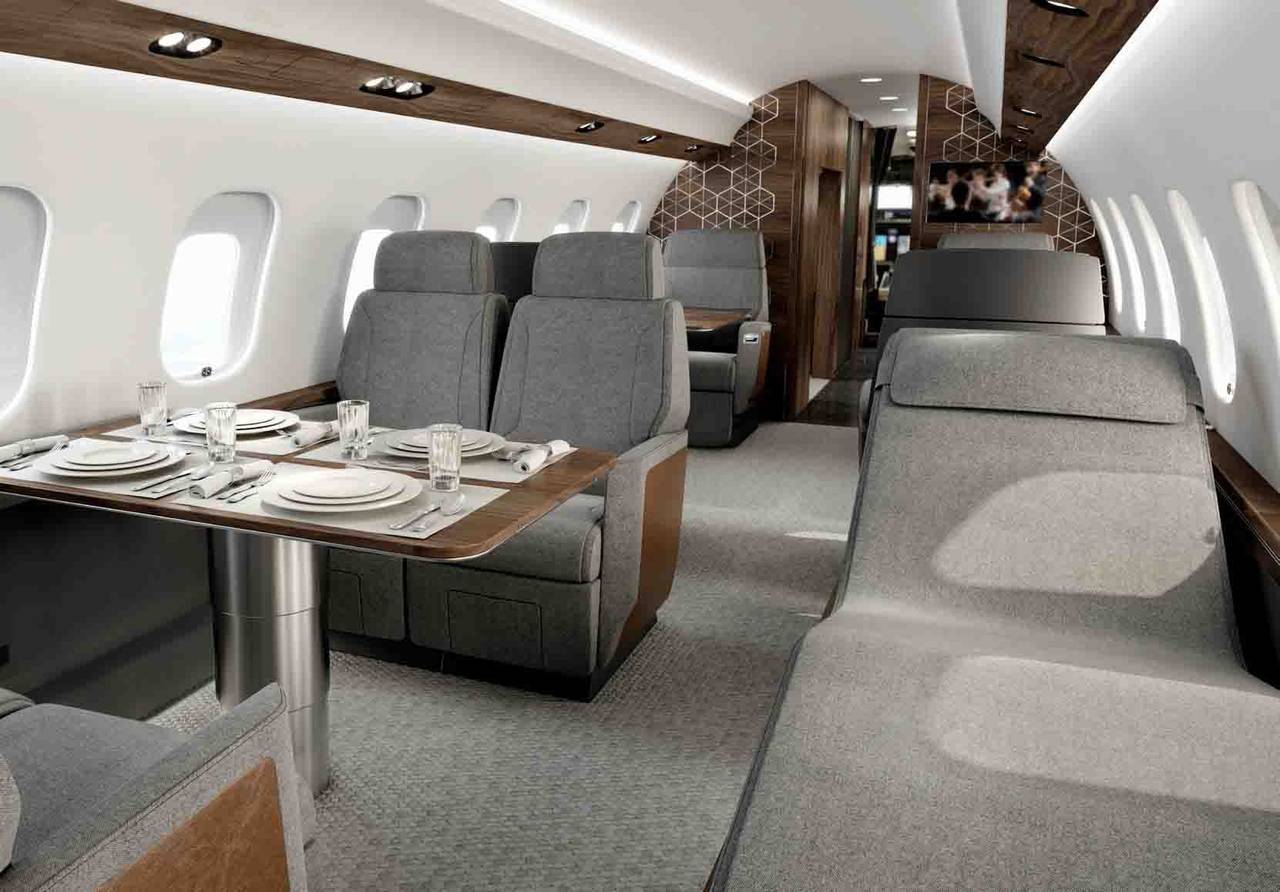

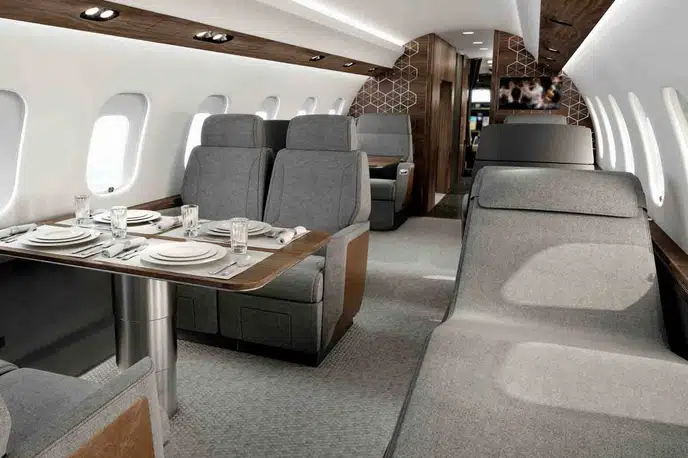

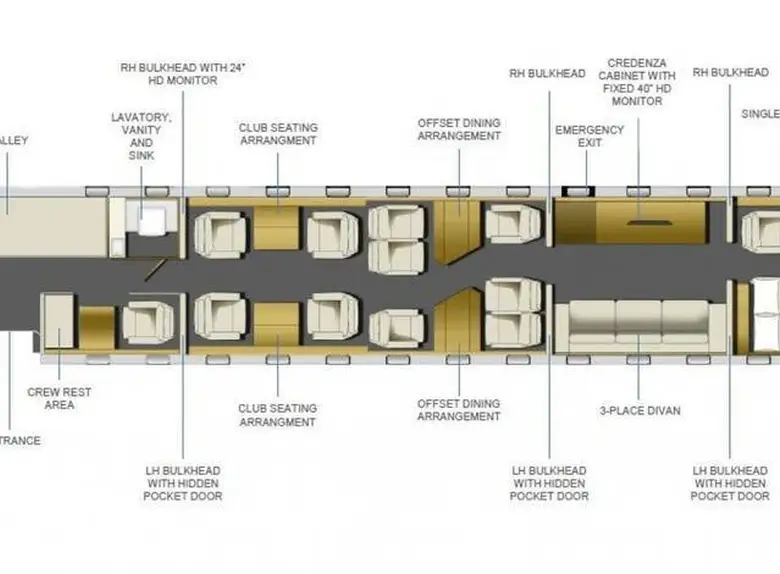

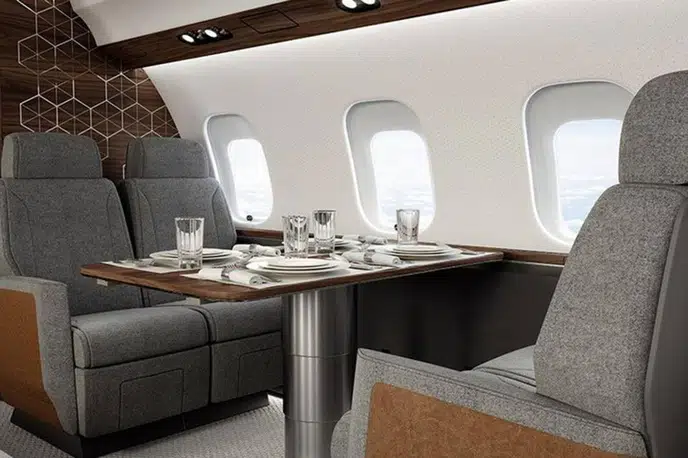

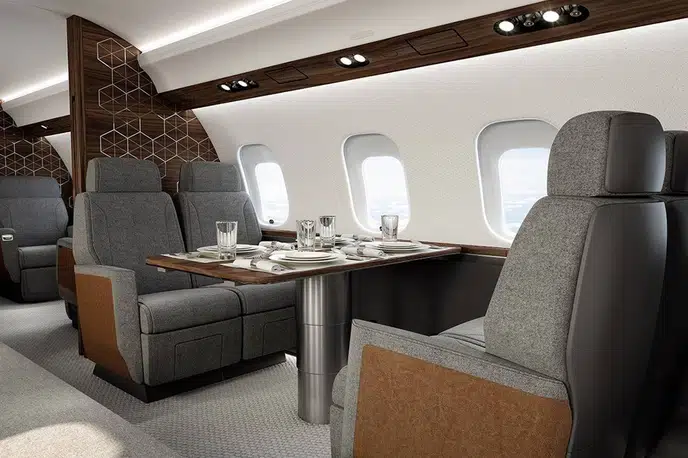

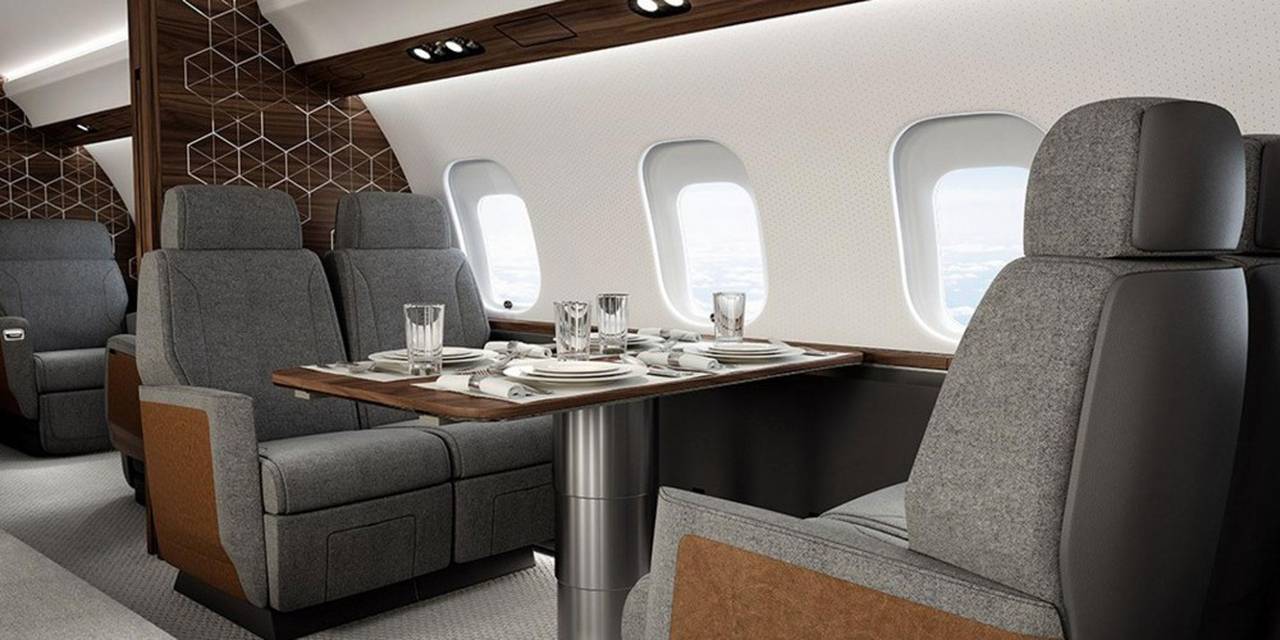

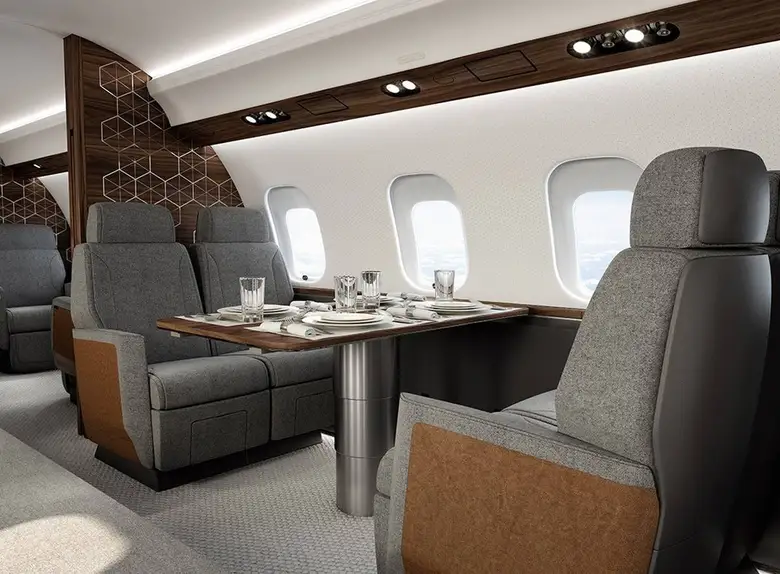

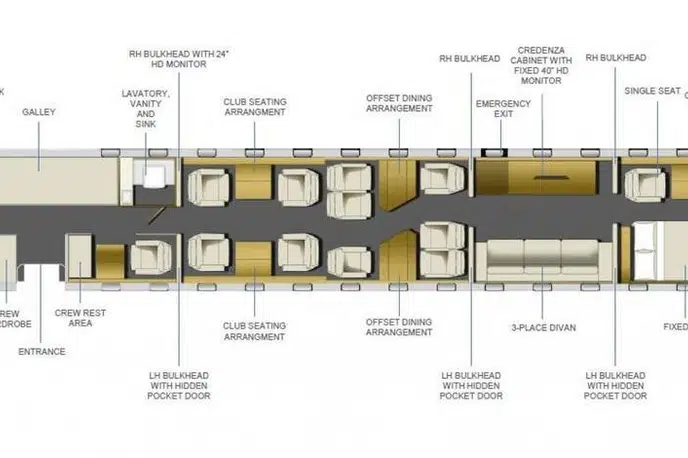

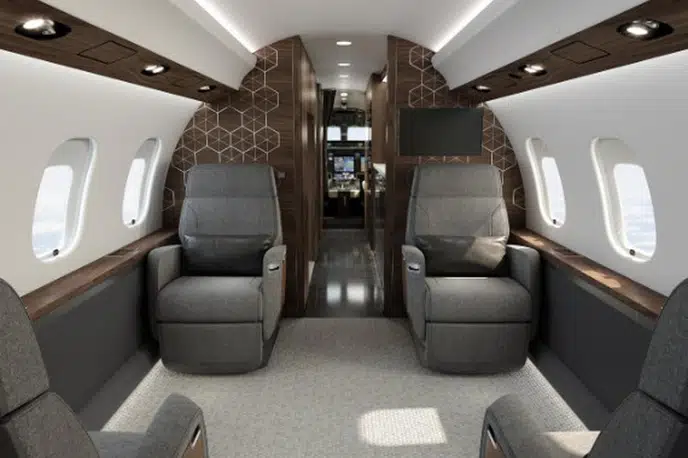

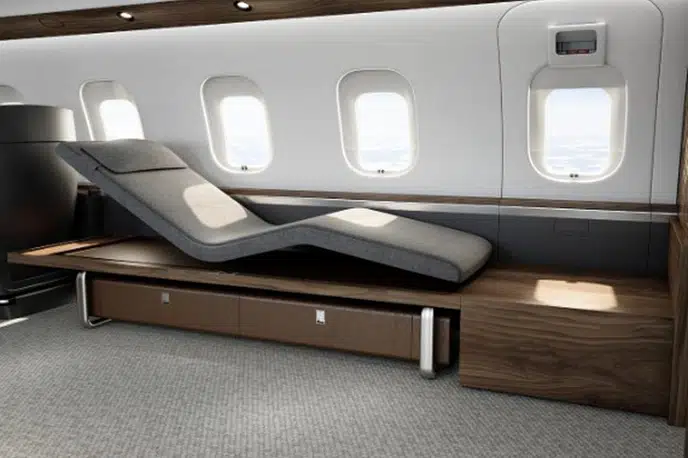

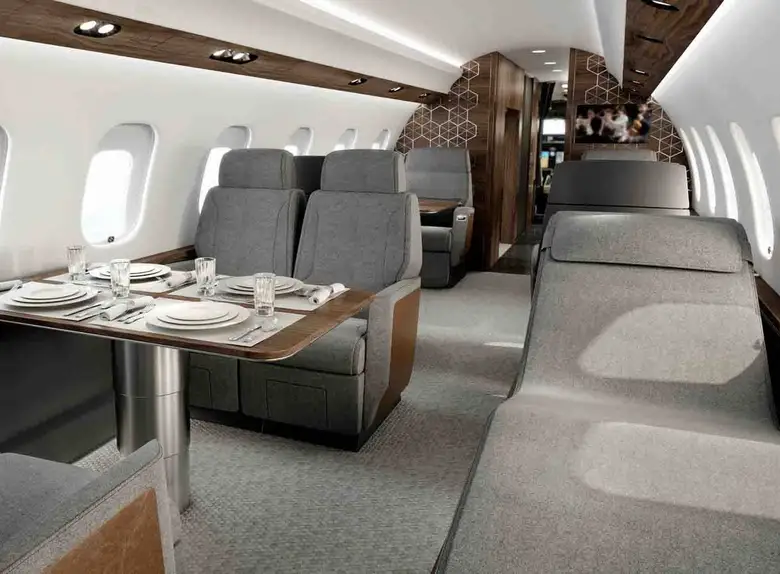

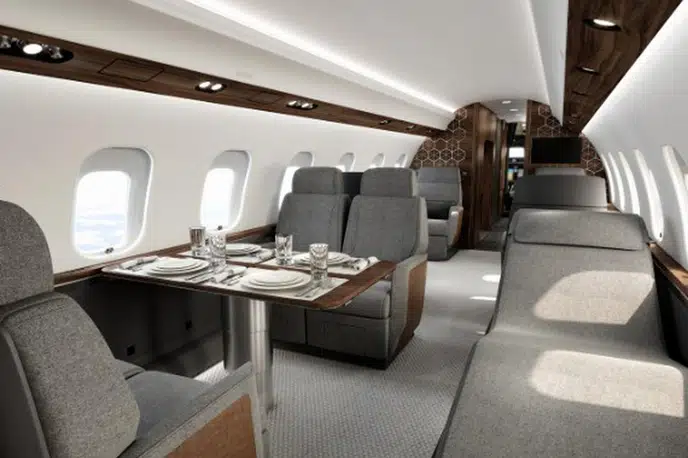

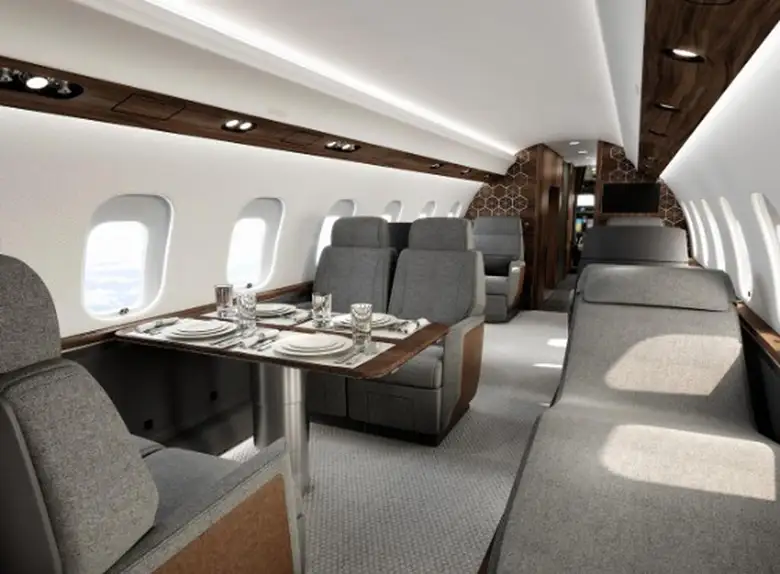

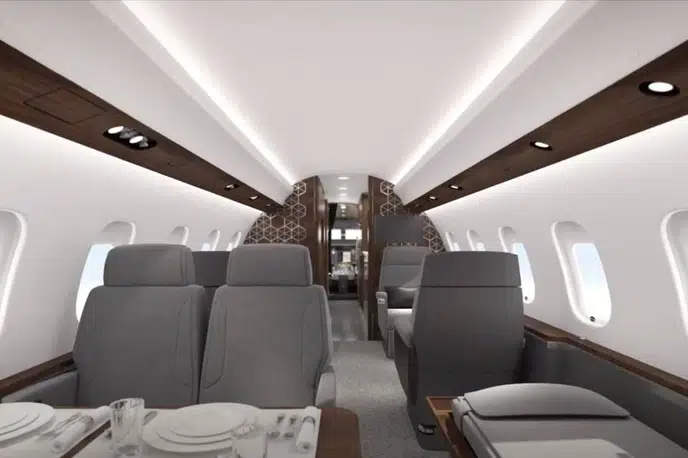

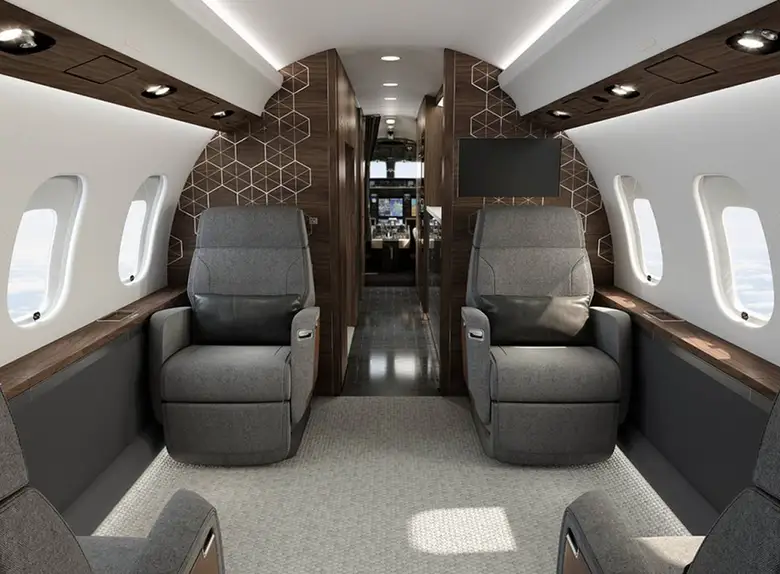

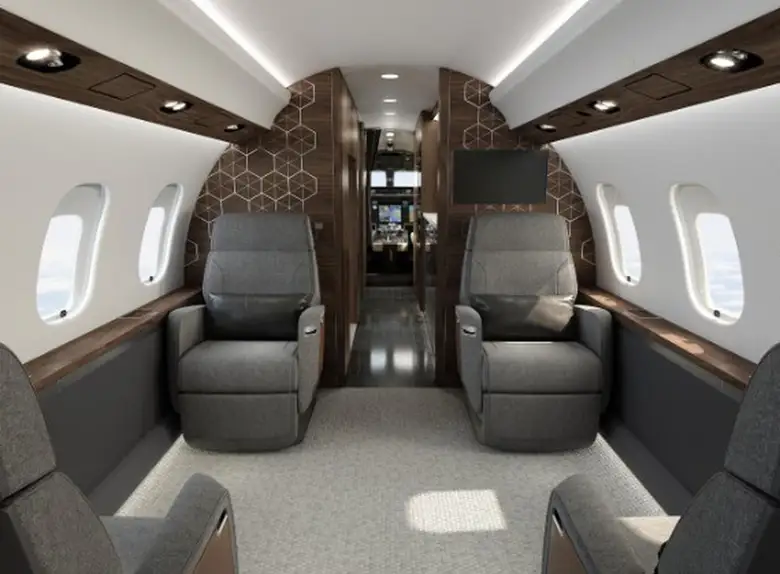

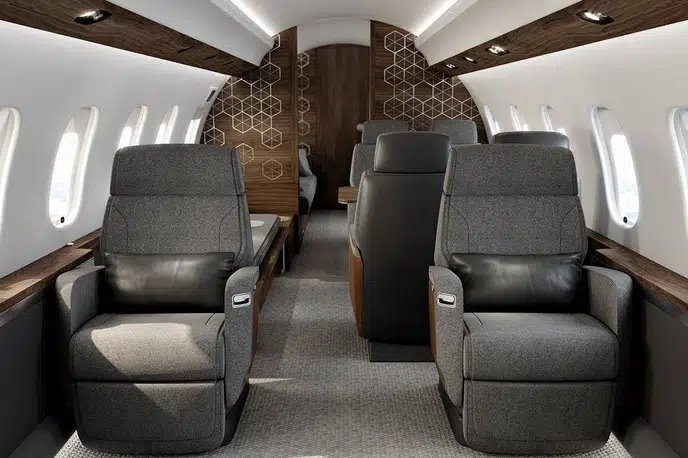

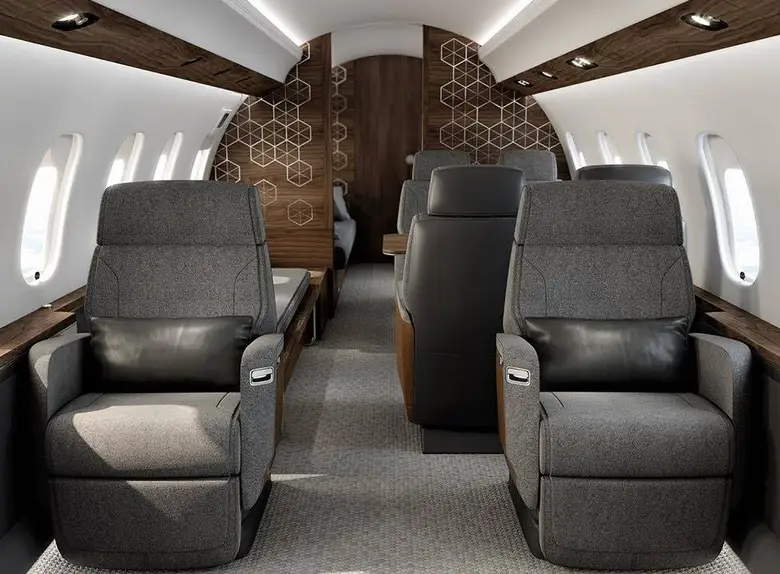

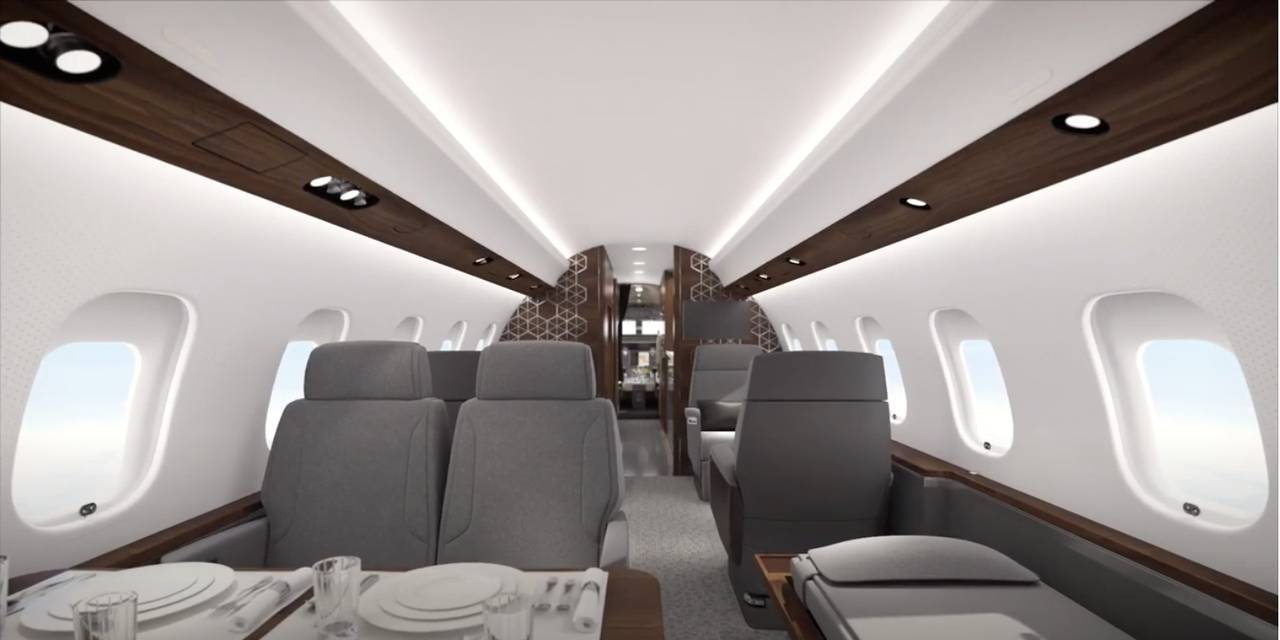

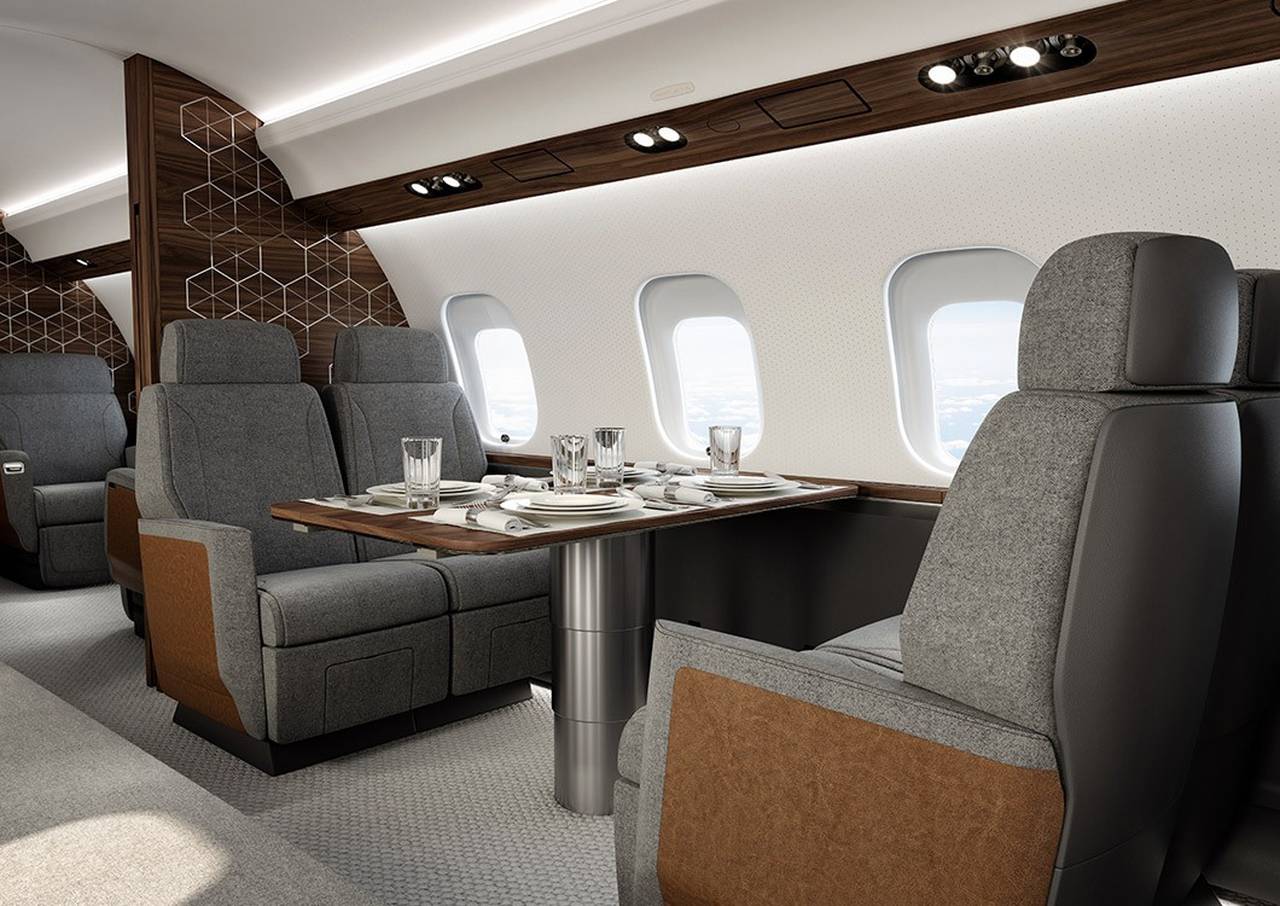

According to the aircraft manufacturer, Bombardier Global 6000 has the largest cabin size of all aircraft specially designed for business aviation use. In three sections of the cabin can comfortably accommodate 15-16 passengers. Many aircraft have a private cabin in the rear of the cabin, many are equipped with an on-board kitchen in the front of the cabin and almost all have a second toilet in front. A plane with typical equipment is capable of carrying 10-11 passengers, with filled tanks. At a cruising speed of 0.82M, the maximum range with 8 passengers is 11,400 km.

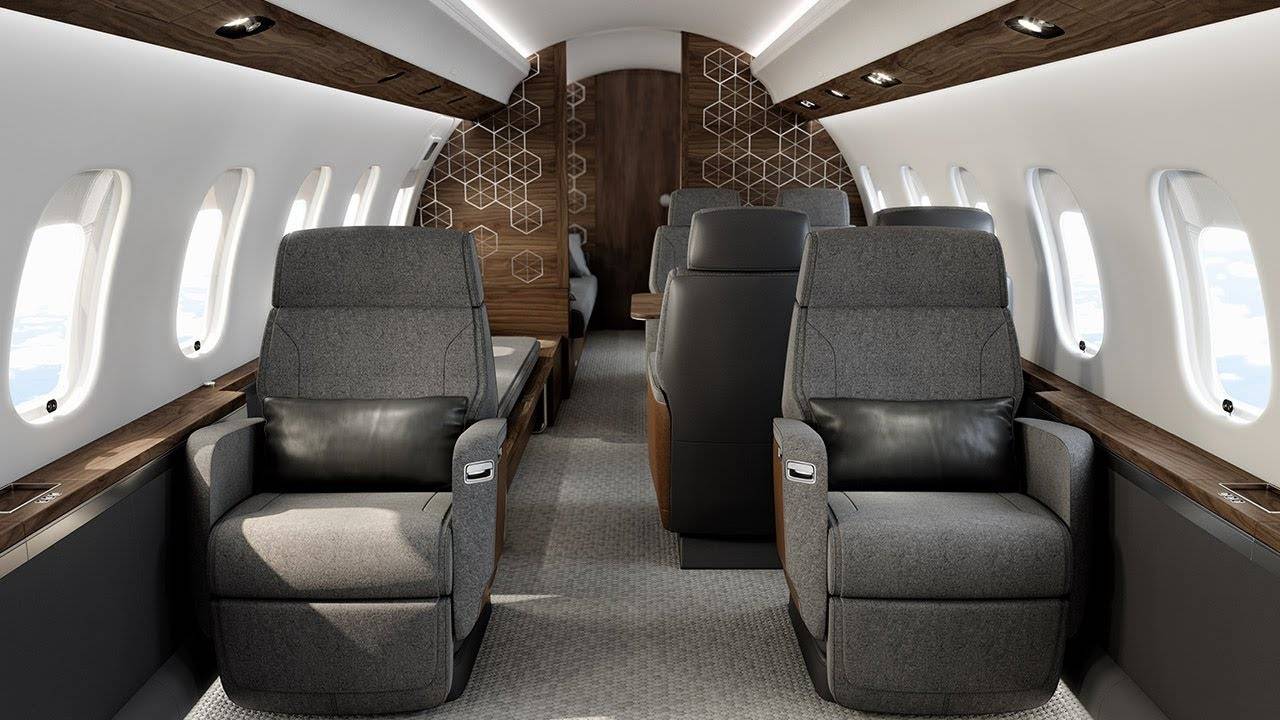

INTERIOR
- Cabin height1.88 m
- Cabin width2.41 m
- Cabin length (1)13.18 m
(1) From cockpit divider to aft most cabin without baggage compartment.
EXTERIOR
- Length30.3 m
- Wingspan28.7 m
- Wing area94.8 m2
- Height7.8 m
AVIONICS
- Bombardier Vision flight deck
- Four large displays
- Combined Vision System (CVS), Head-Up Display (HUD)
- Graphical flight planning, Airport Moving Map (AMM)
- MultiScanTM weather radar
- ADS-B in
- Latest Performance Based Navigation (PBN):
- SBAS/ WAAS
- LPV approach
- RNAV, en-route RNP & RNP AR approaches
- Controller Pilot Data Link Communication (CPDLC)
- Datalink, high-speed SATCOM
SPEED (MACH)
- Top speed0.90
- High-speed cruise0.88
- Typical cruise speed0.85
AIRFIELD PERFORMANCE
- Takeoff distance(SL, ISA, MTOW)1,942 m
- Landing distance(SL, ISA, typical)682 m
OPERATING ALTITUDE
- Maximum operating altitude15,545 m
- Initial cruise altitude(MTOW)12,497 m
ENGINES
- Rolls-Royce Pearl engine
- Thrust: 15,125 lbf (67.3 kN)
- Flat rated to ISA + 15°C
-
WEIGHTS
- Maximum ramp weight45,246 kg
- Maximum takeoff weight45,132 kg
- Maximum landing weight35,652 kg
- Maximum zero-fuel weight26,308 kg
- Basic operating weight23,691 kg
- Maximum fuel weight20,434 kg
- Maximum payload2,617 kg
